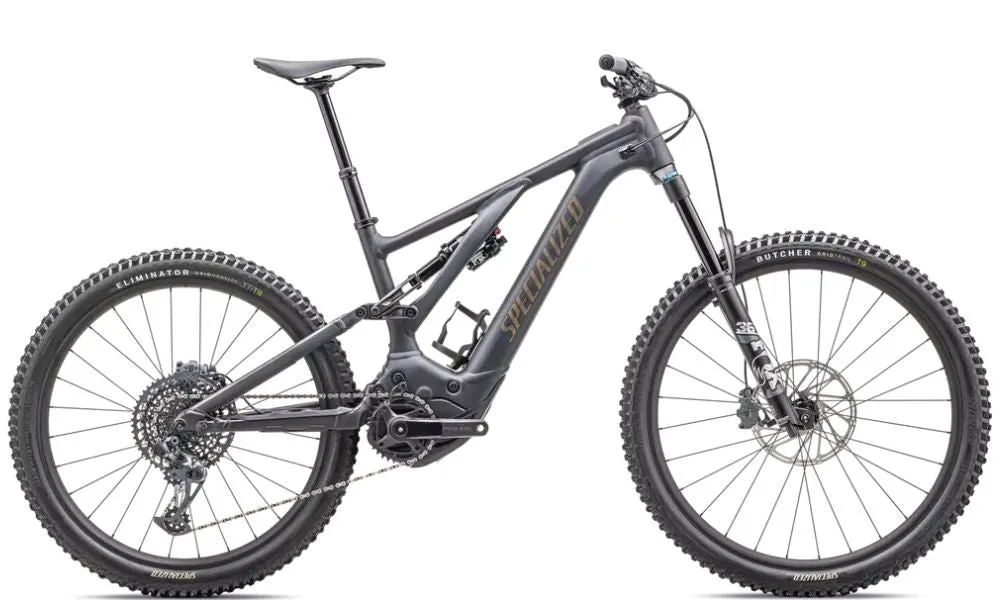

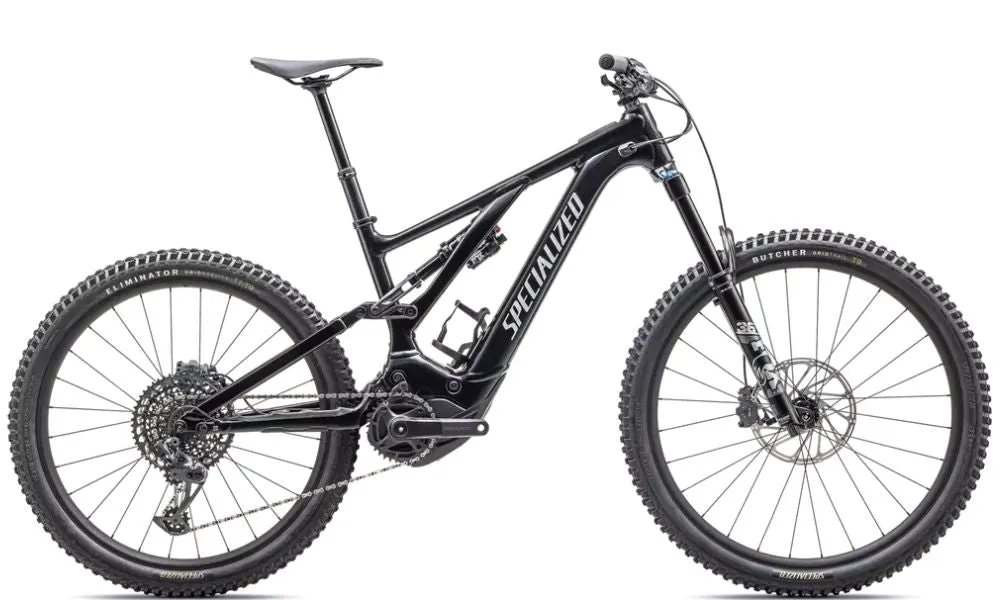

Specialized 2025 Turbo Levo Comp Alloy

The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride-anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the latest Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Master Mind Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM GX/X01 drivetrain, trail-taming FOX suspension, and a lightweight, durable alloy wheelset, the Turbo Levo delivers more of everything that you love about trail riding.

• Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
• The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
• A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
• Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
• Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
• The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

Specifications

Specialized 2025 Turbo Levo Comp Alloy

Frame

Colour: Black/Dove Grey/Black, Sage Green/Cool Grey/Black and Satin Midnight Shadow/Harvest Gold Metallic
Frame: Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Fork: Fox 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, Grip damper
Shock: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
SWAT: SWAT CC steerer tube integrated tool with chain tool and link

Drivetrain

Crankset: Praxis forged M30, custom offset, 160mm
Pedals: Chain: SRAM GX Eagle, 12-speed
Bottom Bracket: NA
Rear Derailleur: Sram X01 Eagle, 12-speed
Front Derailleur: NA
Derailleur Shifter: SRAM GX Eagle, trigger, 12-speed, single click
Freewheel/Cassette: Sram XG-1275, 12-speed, 10-52t

Wheels

Tyres: [F] Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" [R] Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"
Wheels/Rims: Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Hubs: [F] Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h [R] Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

Braking System

Brakes: [F] SRAM Maven Bronze, 220mm rotor, metallic pads [R] SRAM Maven Bronze, 200mm rotor, metallic pads
Brake Levers:

Other

Handlebar: 6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise
Stem: Alloy Trail Stem, 35mm bar bore
Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seat Post: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm

E-Bike

Drive Unit: Specialized 2.1 Custom Rx Trail Tuned Motor
Battery: Specialized M3-700, Integrated battery, 700Wh
UI/Remote: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT /Bluetooth®, w/Handlebar remote
Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Geometry

Specialized 2025 Turbo Levo Comp Alloy
